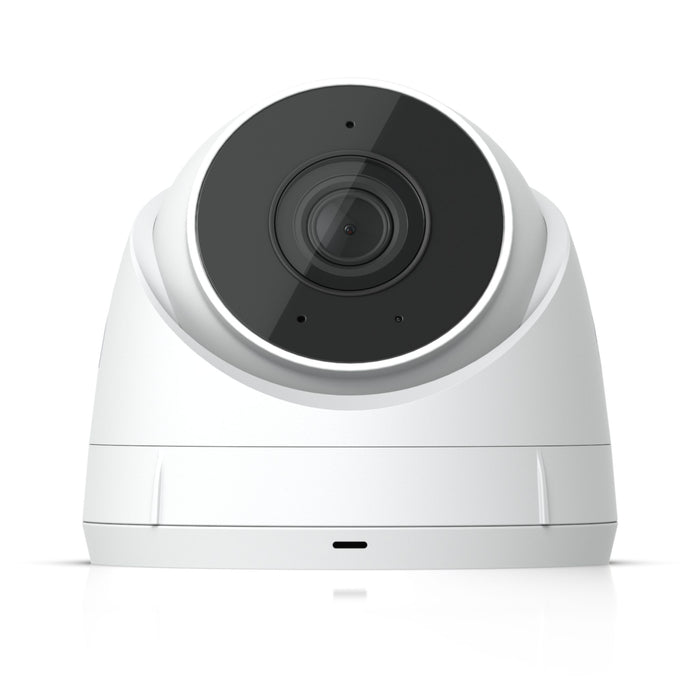

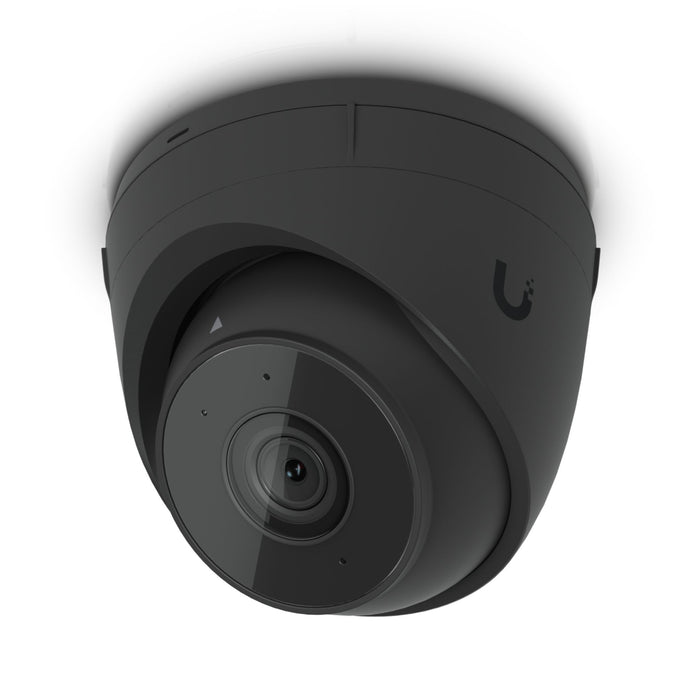

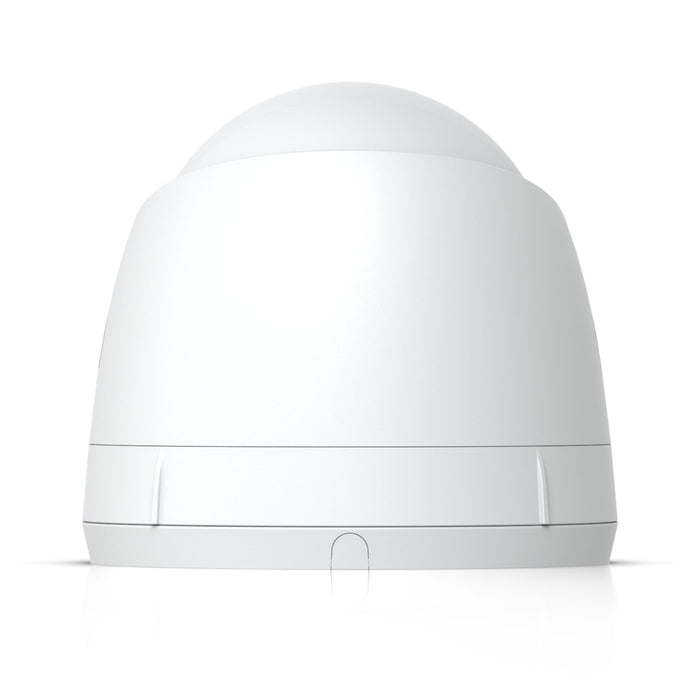

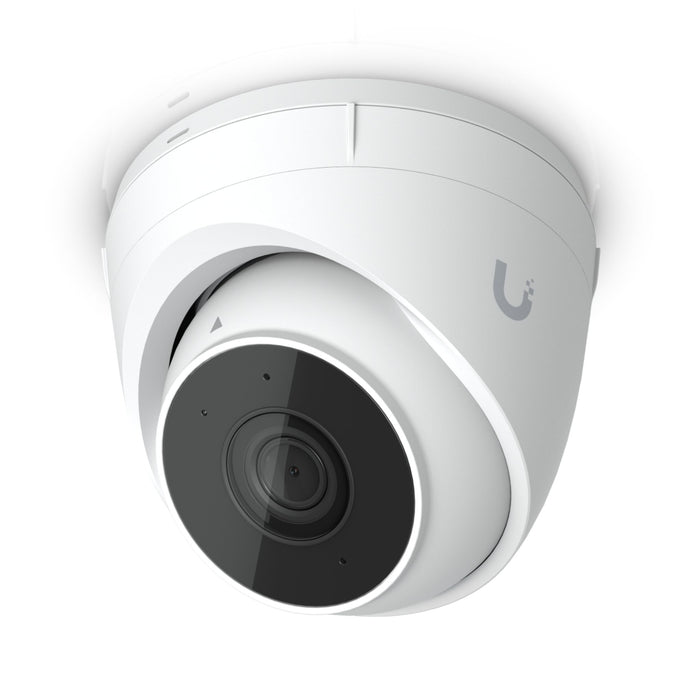

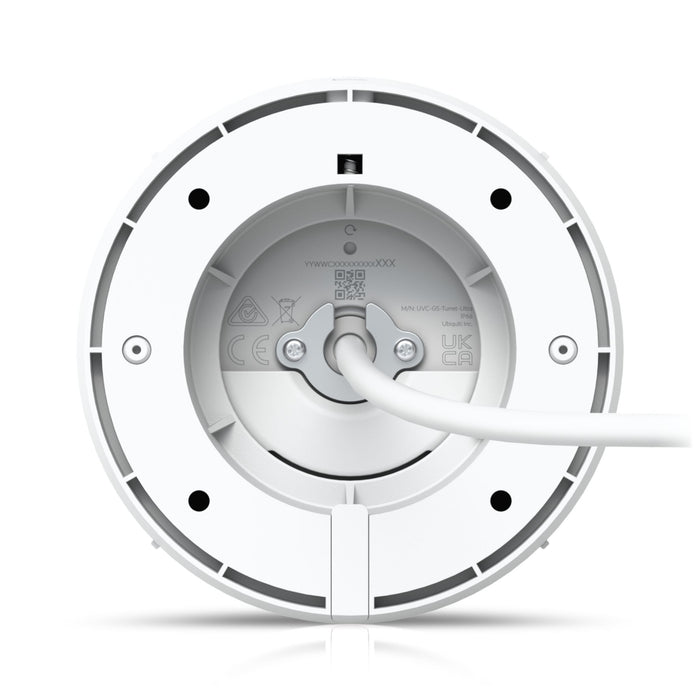

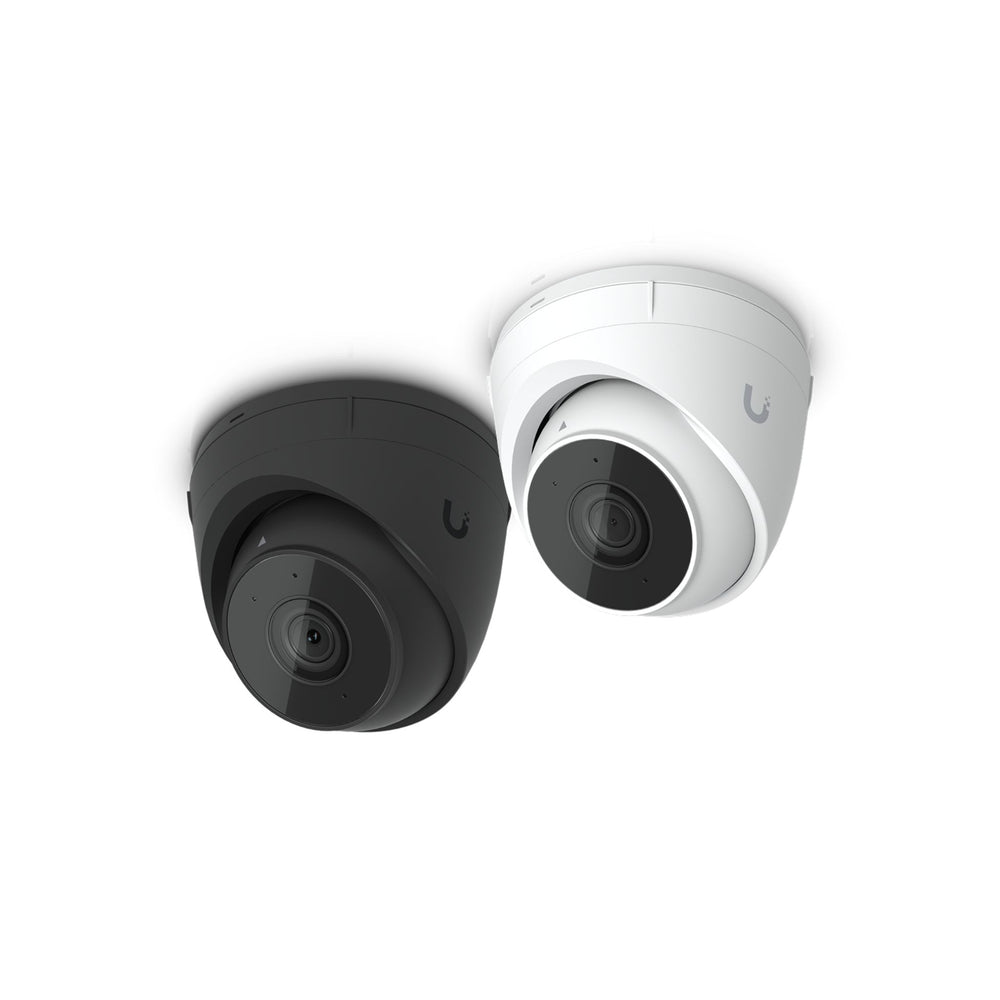

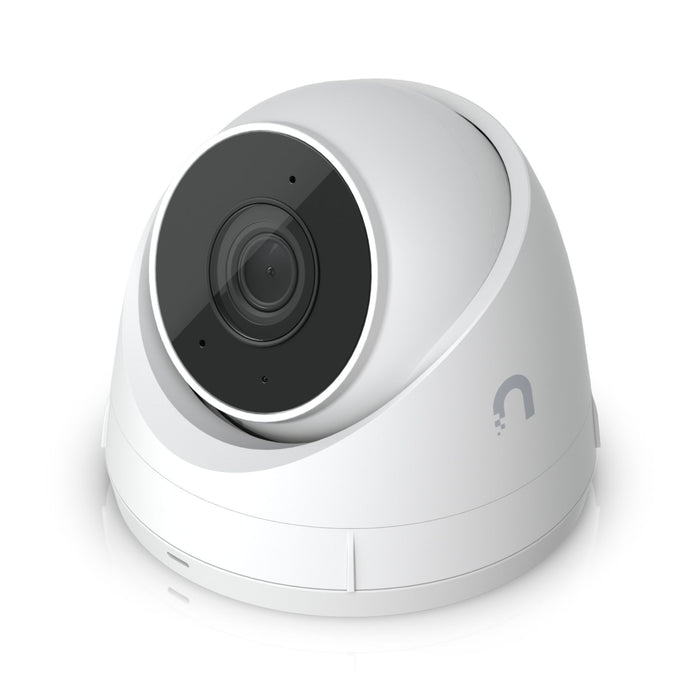

Ubiquiti UniFi G5 Turret Ultra
The Ubiquiti G5 Turret Ultra is an ultra-compact, tamper-resistant, weatherproof 2K HD PoE camera designed for high-quality surveillance. With a 2K (4MP) resolution, it delivers clear, detailed footage, while the ultra-wide 102.4° viewing angle ensures comprehensive coverage. Enjoy 30m (98ft) IR night vision for reliable performance in low light, and AI event detection for smarter monitoring. The integrated microphone allows audio recording, and PoE connectivity ensures simple installation and power. Perfect for outdoor environments, it’s built to withstand the elements.
Tech Specs
Click here for the UniFi G5 Turret Ultra datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 2K |
| Field of View | H: 102.4° V: 54.9° D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Performance | |
| Networking Interface | 10/100 MbE RJ45 port |
| Video - Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Optics - Sensor | 1/2.4" CMOS |
| Optics - Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Cable - Connector Type | RJ45 |
| Cable - Diameter | 5 mm (0.2") |
| Cable - Length | 30 cm (1 ft) |
| Jacket Material | Polycarbonate |
| Jacket Enclosure Dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q: What is the Ubiquiti UVC-G5-Turret-Ultra and what makes it special?
A: The UVC-G5-Turret-Ultra is an ultra-compact, tamper-resistant, weatherproof 2K (4 MP) PoE turret camera, designed with long-range night vision and a built-in microphone for complete outdoor and indoor surveillance.
Q: What are the video specs and optical features of the UVC-G5-Turret-Ultra?
A: It delivers 4 MP resolution (2688×1512 @30 fps), uses H.264 compression, and offers a wide 102.4° horizontal field of view captured by a fixed-focus lens.
Q: How does the UVC-G5-Turret-Ultra perform in low-light or night environments?
A: Equipped with built-in IR LEDs and an IR cut filter, it provides infrared night vision up to approximately 30 m (98 ft), ensuring clear footage in darkness.
Q: What is its build quality and environmental durability?
A: The housing is constructed from aluminum alloy and UV-stabilized polycarbonate, is IP66-rated for weatherproofing, and IK04-rated for impact resistance. Other specs: 330 g weight, Ø 90 × 71 mm dimensions.
Q: How is the camera powered and managed?
A: It runs on standard 802.3af PoE (37-57 V DC), consuming ~4 W. Management is through the UniFi Protect platform, supporting AI event detection, audio recording, and full device control.
