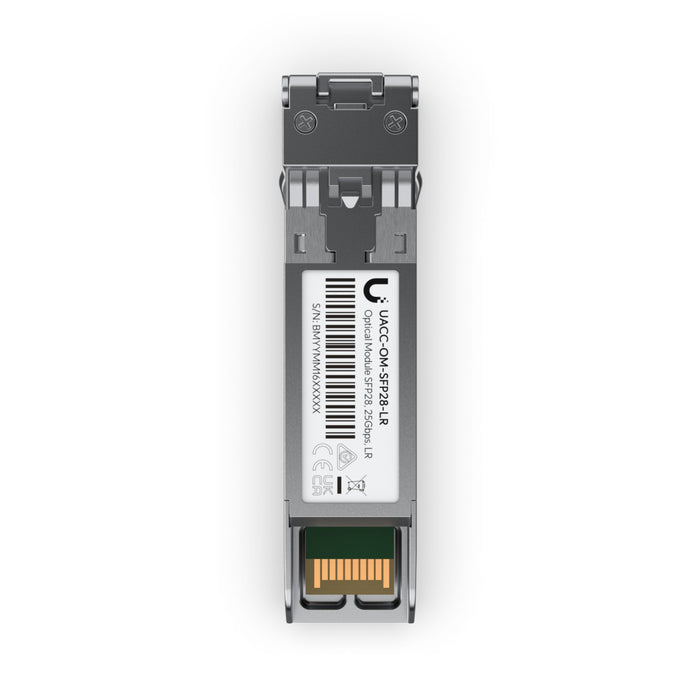

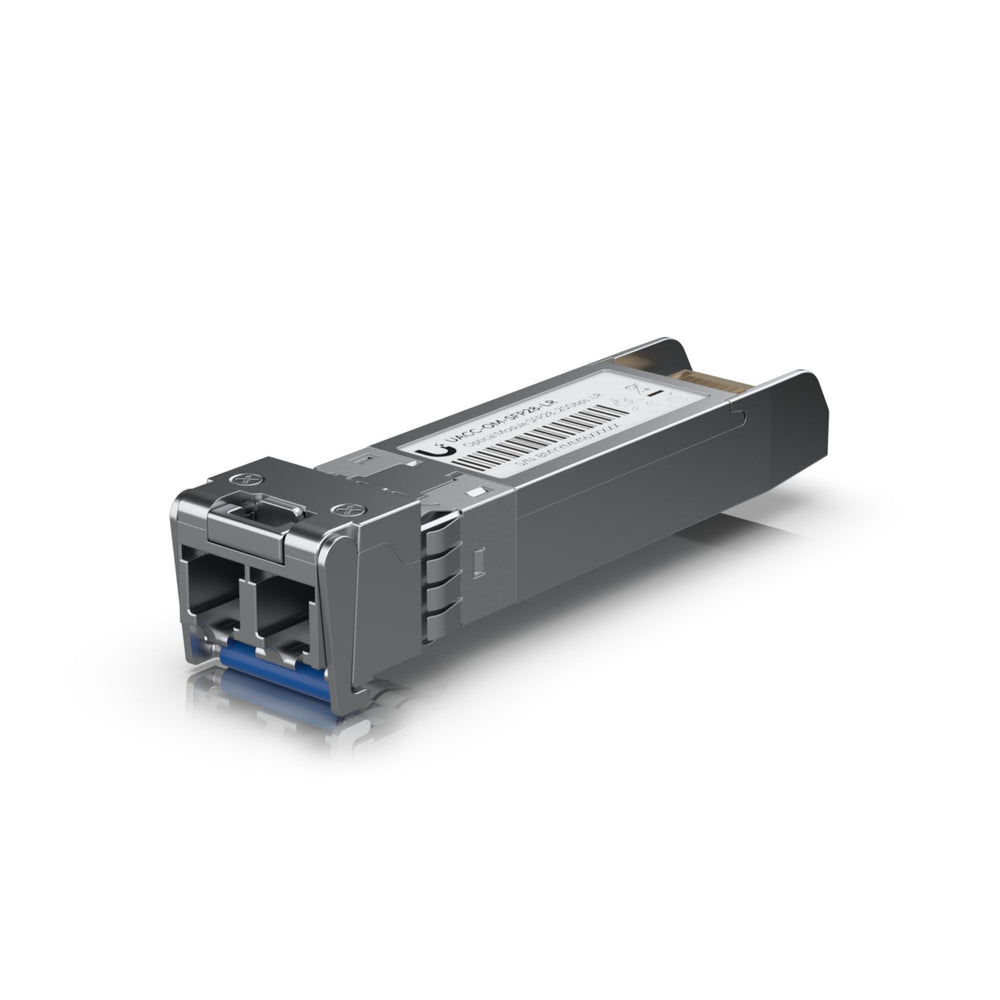

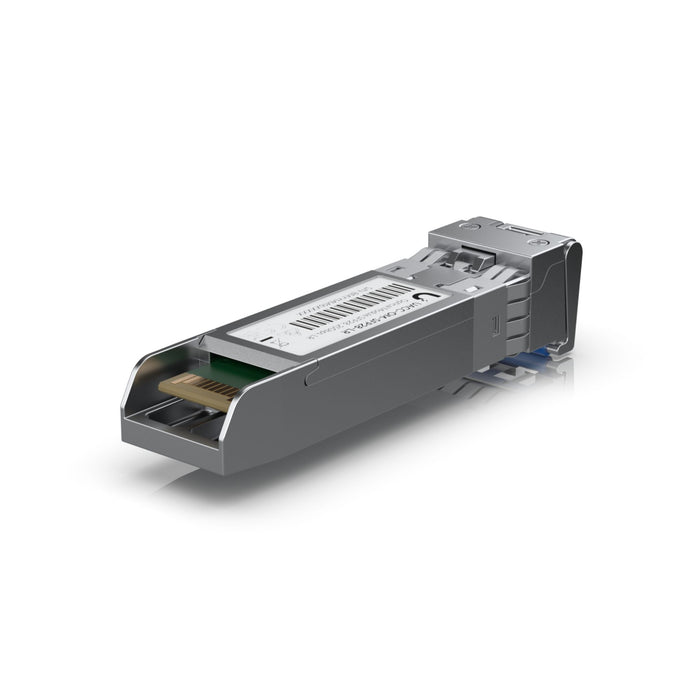

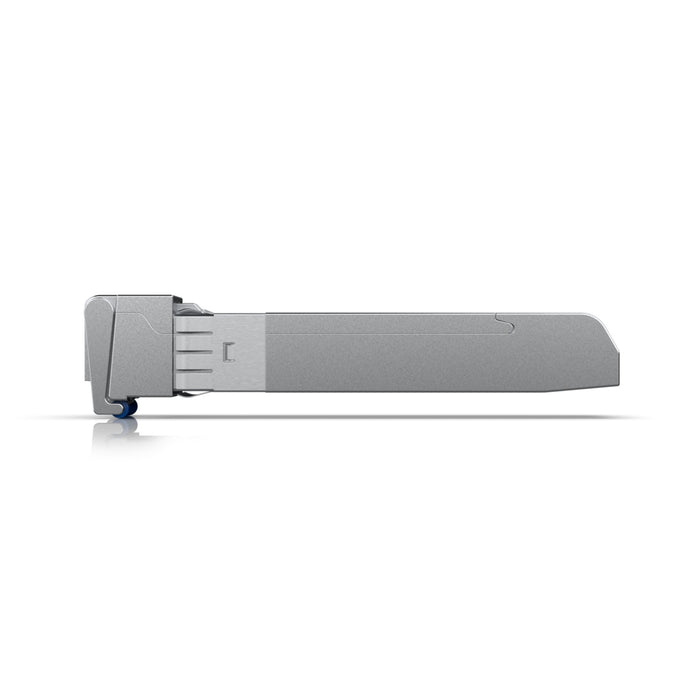

Ubiquiti 25 Gbps Single-Mode Optical Module 10KM
The Ubiquiti 25 Gbps SM Optical Module 10KM provides 25 Gbps throughput and is SFP28-compatible for short-range connections up to 10 km*. *Fiber cable not included.
Tech Specs
Click here for the Ubiquiti 25 Gbps Single-Mode Optical Module 10KM datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Form Factor | SFP |
| Connector | Duplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Supported Cable Distance | 10 km (6.2 mi) |
| Max. Power Consumption | 1.3 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
| NDAA Compliant | ✓ |
FAQs
Q1: What is the Ubiquiti UACC-OM-SFP28-LR?
A1: The UACC-OM-SFP28-LR is a 25G SFP28 optical transceiver module designed for high-speed data transmission over single-mode fiber. It supports 25G Ethernet connections up to 10 km using a 1310 nm wavelength and a duplex LC UPC connector.
Q2: What is the maximum data rate supported by the UACC-OM-SFP28-LR?
A2: The module supports a maximum data rate of 25 Gbps, making it suitable for high-performance networking applications.
Q3: What type of fiber does the UACC-OM-SFP28-LR use?
A3: The transceiver is designed for use with single-mode fiber (SMF), ensuring long-distance data transmission with minimal signal loss.
Q4: What is the operating temperature range of the UACC-OM-SFP28-LR?
A4: The module operates within a temperature range of 0°C to 70°C (32°F to 158°F), making it suitable for various environmental conditions.
Q5: Is the UACC-OM-SFP28-LR compatible with other devices?
A5: Yes, the UACC-OM-SFP28-LR is compatible with SFP28, SFP+, and SFP interfaces, ensuring versatility in networking setups.
